SCREEDED SYSTEM SOLUTIONS
Roth original Tacker System
The Roth original tacker system provides a high degree of flexibility and ease of installation even with most challenging of floor plans. The pipe is secured to the pre-laid insulation by means of a Roth Tacker Gun and barbed either 43 or 58 mm pipe clips. The system is suitable for Roth X-PERT S5 pipe 16 to 20 mm depending on design requirement to achieve optimum heating or cooling across the floor.

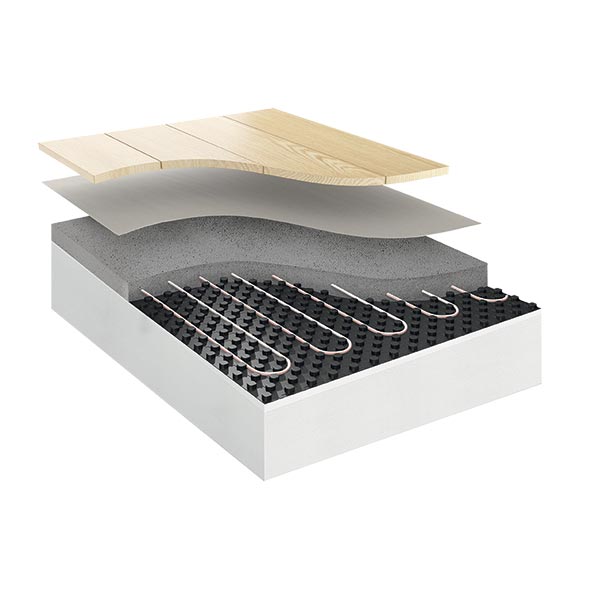

Roth Knob System
The Roth Knob system is characterised by it’s easy lay installation. The knob contour enables roth X-PERT pipe 14 to 16 mm to be fixed into position without the need for any tools. All installation centres and patterns are possible. There are also two options for expanded polystyrene insulation options 10 and 30 mm.
Roth Clip Rail System
The Roth clip rail system is attached to existing insulation with holding clips or secured in concrete with a nailgun. In addition the rail comes with adhesive tape on the underside to secure initial positioning. The clip rail is 2 meters long with options of mounting either 10.5 mm, 16 mm or 20 mm Roth X-PERT pipe.
